Upgrade your woodworking game with our Adjustable Dowel Maker Jig!
Experience the ultimate precision and efficiency with our Adjustable Dowel Maker Jig. Crafted with high-quality materials and innovative design, this tool is perfect for woodworking enthusiasts and professionals alike.
Features:

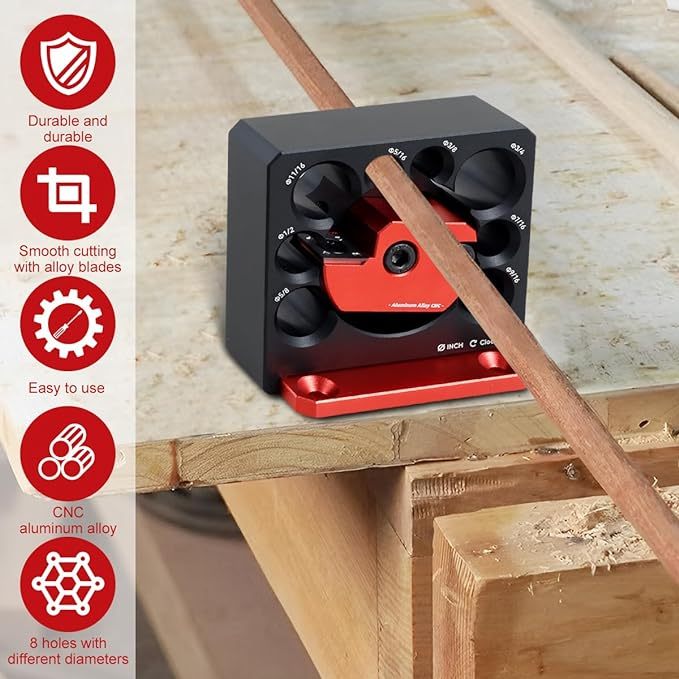

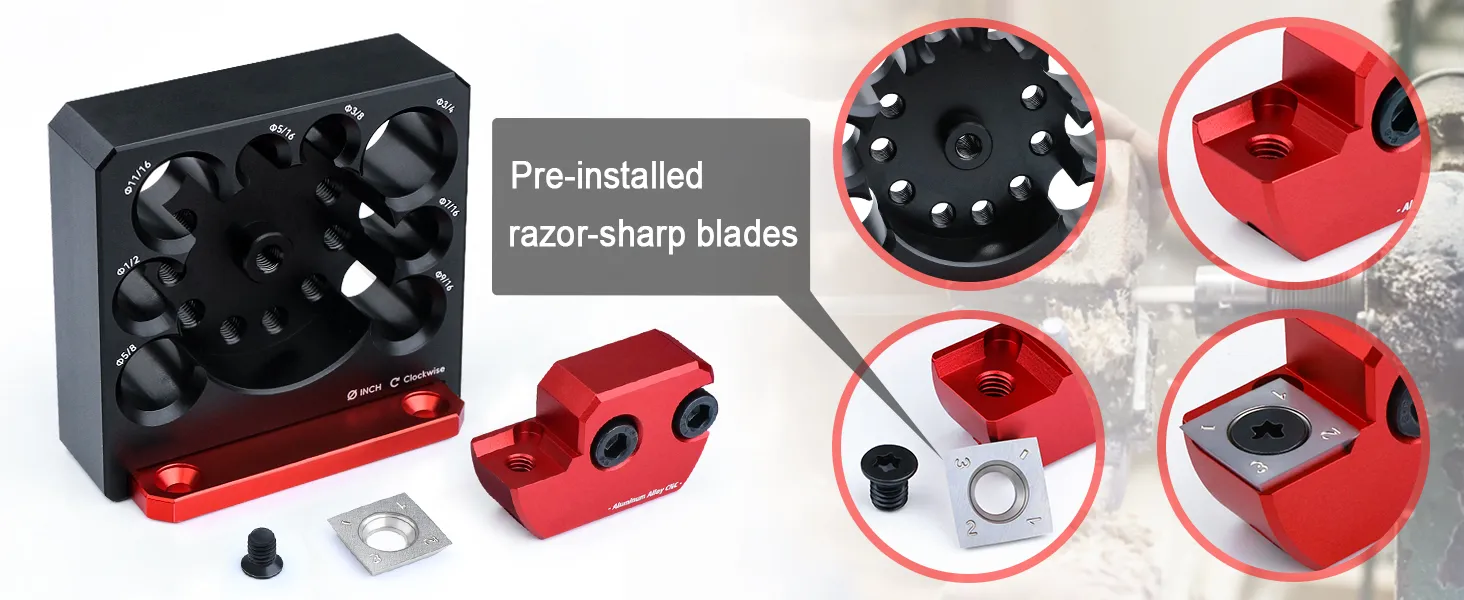

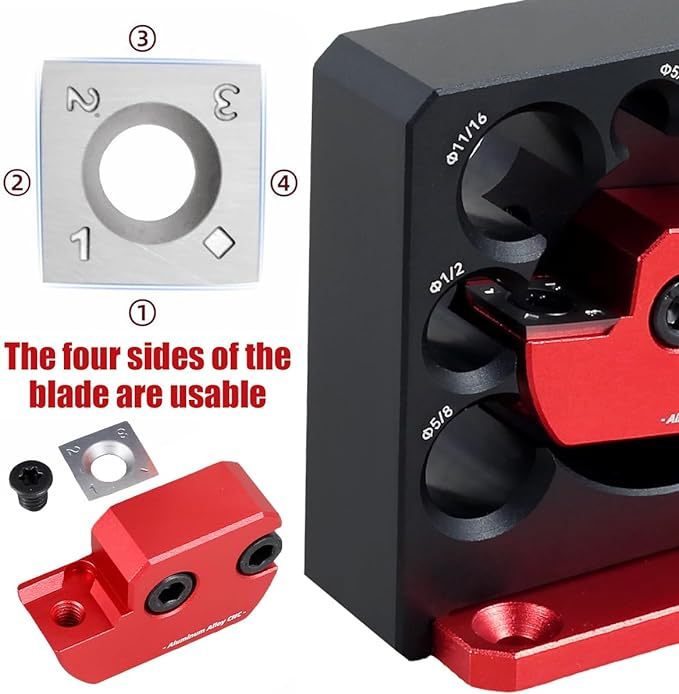

Innovative Blade System : Equipped with indexable carbide inserts, our dowel maker ensures sharp, smooth cuts for efficient woodworking. No sharpening needed - just rotate to a fresh edge for continued precision.

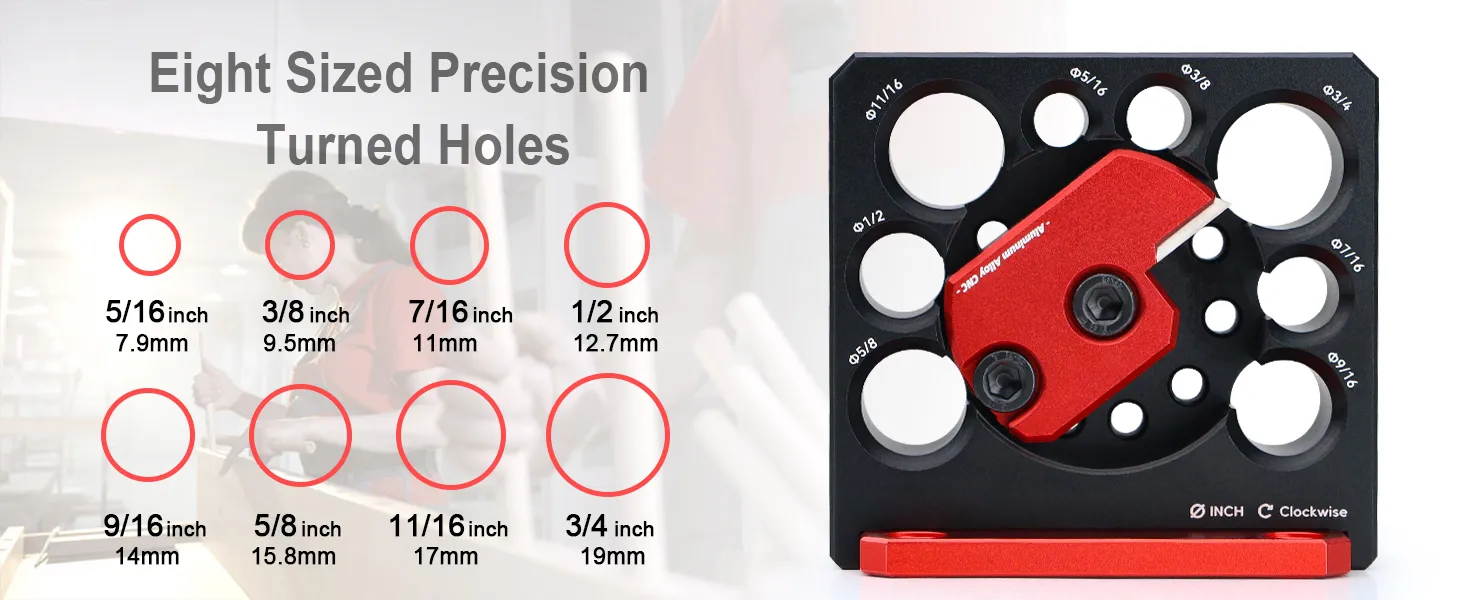

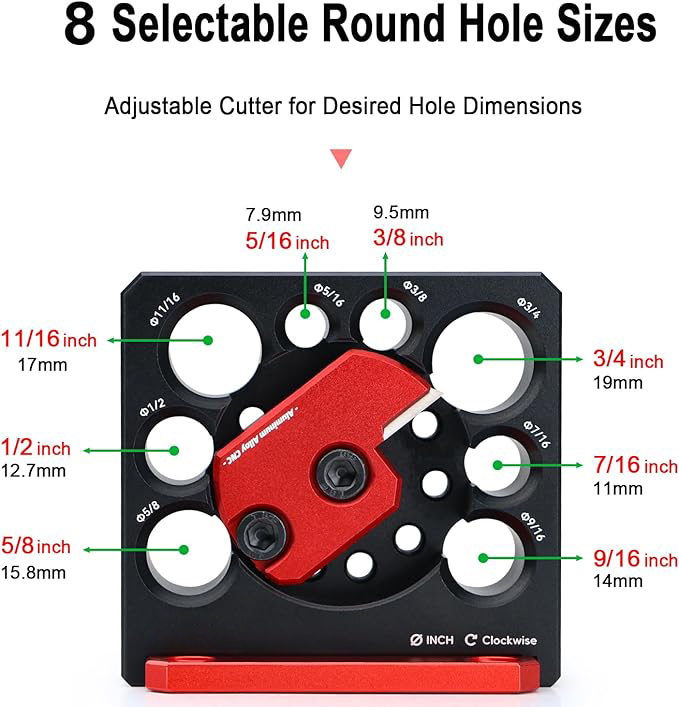

Versatile Sizing : Featuring 8 holes in 1/16" increments, this compact dowel cutter ranges from 5/16 to 3/4 inches, catering to a variety of doweling tasks with ease and accuracy.
Durable Construction : Crafted from premium CNC aluminum alloy and finished with an anodized coating, our dowel jig kit resists rust and wear, guaranteeing long-lasting performance in your workshop.

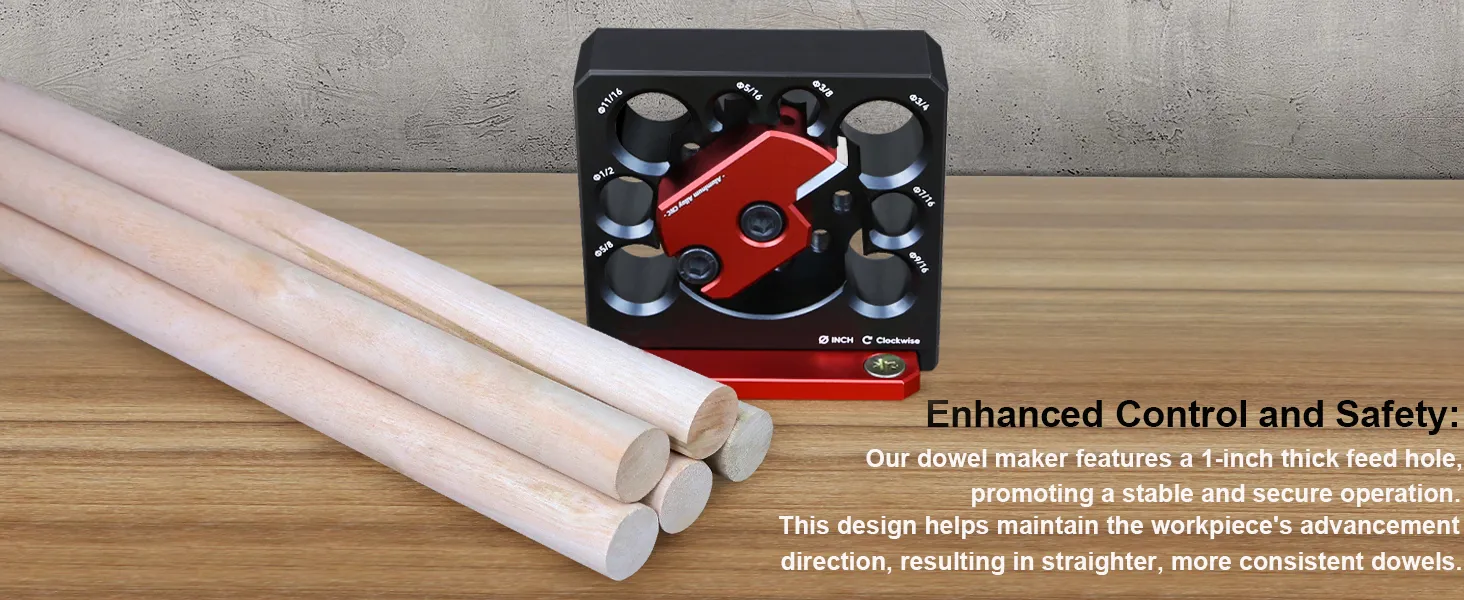

Enhanced Control : Designed with a 1-inch thick feed hole, our dowel maker aids in maintaining straight advancement of the workpiece, perfect for creating uniform dowels and sticks with minimal effort.

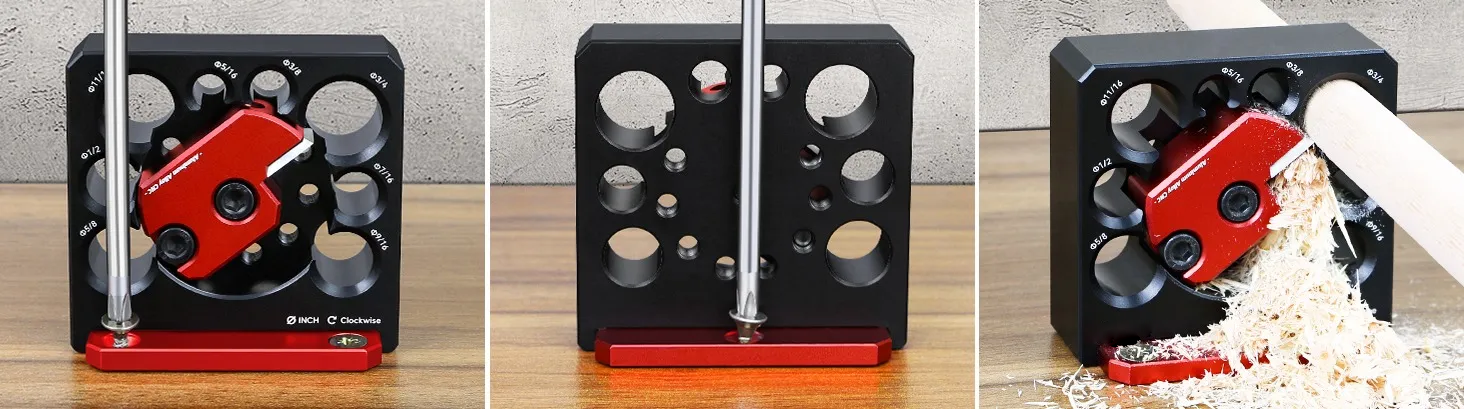

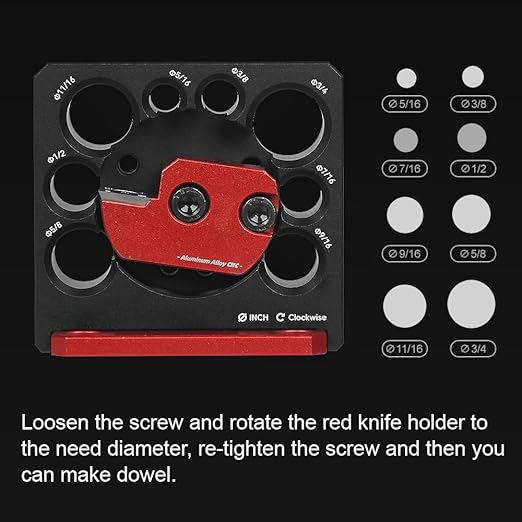

User-Friendly Design : Simple to operate, adjust the cutter to your desired diameter with a quick twist of the screw, ensuring a fast transition between sizes for a seamless doweling experience.
Benefits:
Precision Dowel Creation: Achieve consistent and flawless dowels with ease, enhancing the overall quality of your woodworking projects.Versatile Applications: Ideal for various woodworking applications such as furniture making, cabinet construction, and more.Cost-Effective Solution: By creating your own dowels, you can save money compared to purchasing pre-made dowels.Improved Efficiency: The adjustable design and easy-to-use functionality make dowel creation efficient, increasing your productivity.

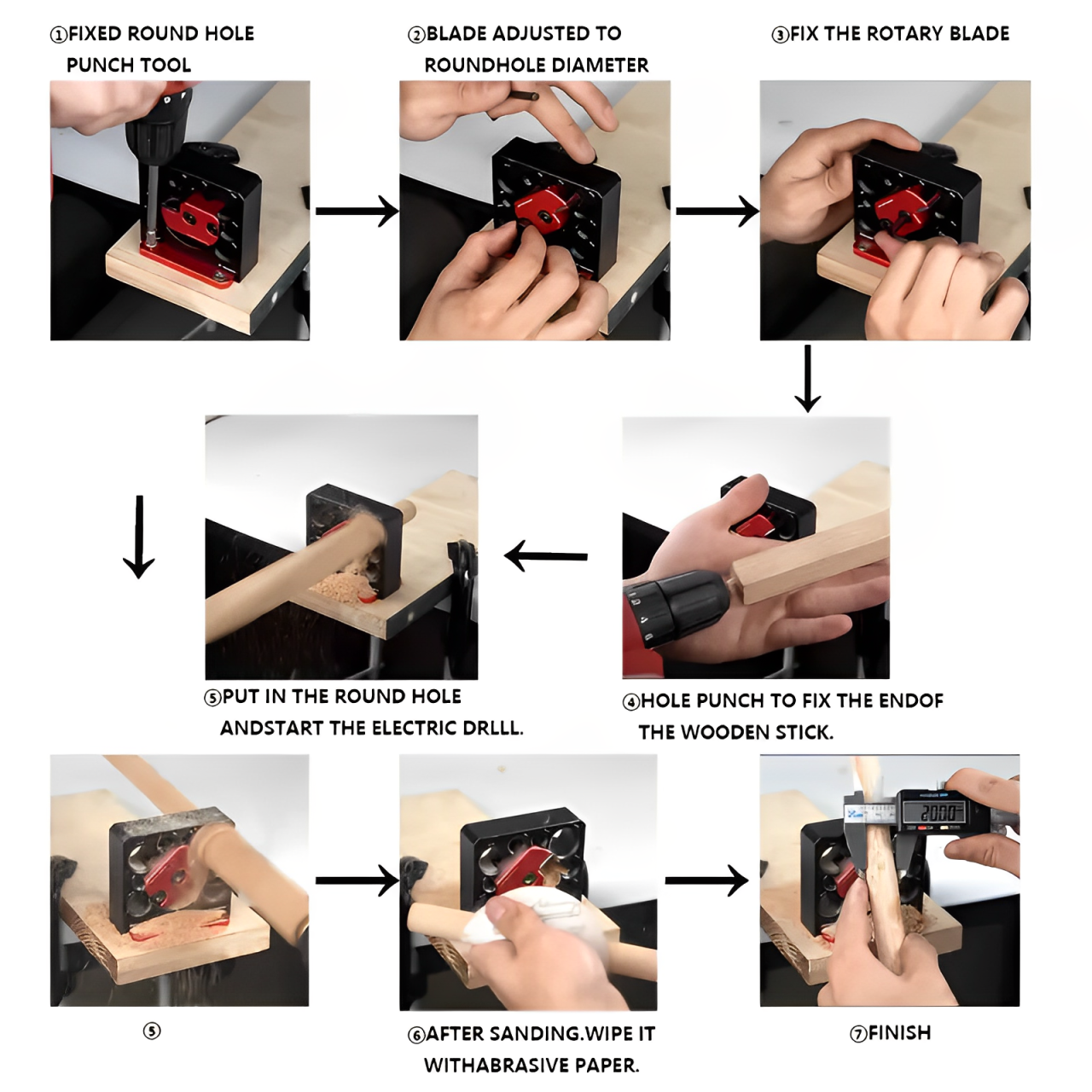

Following the instructions below will produce a much better result.

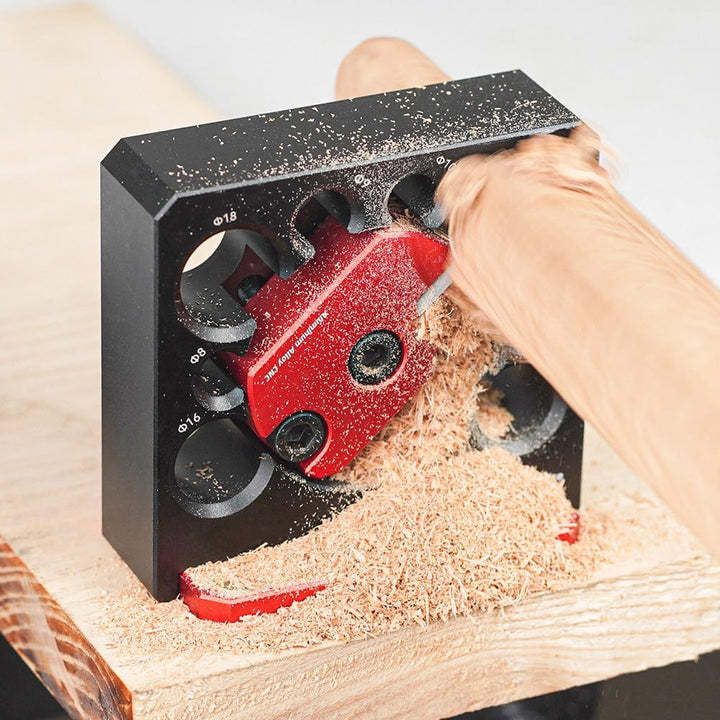

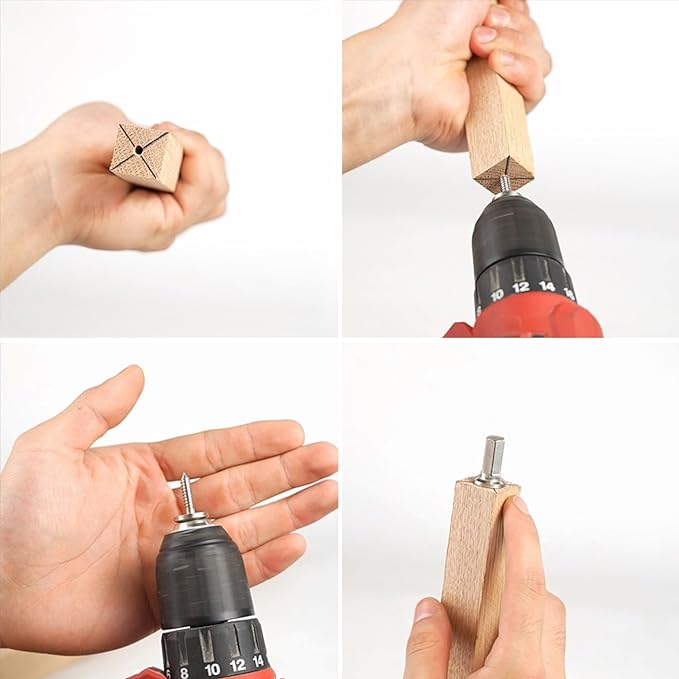

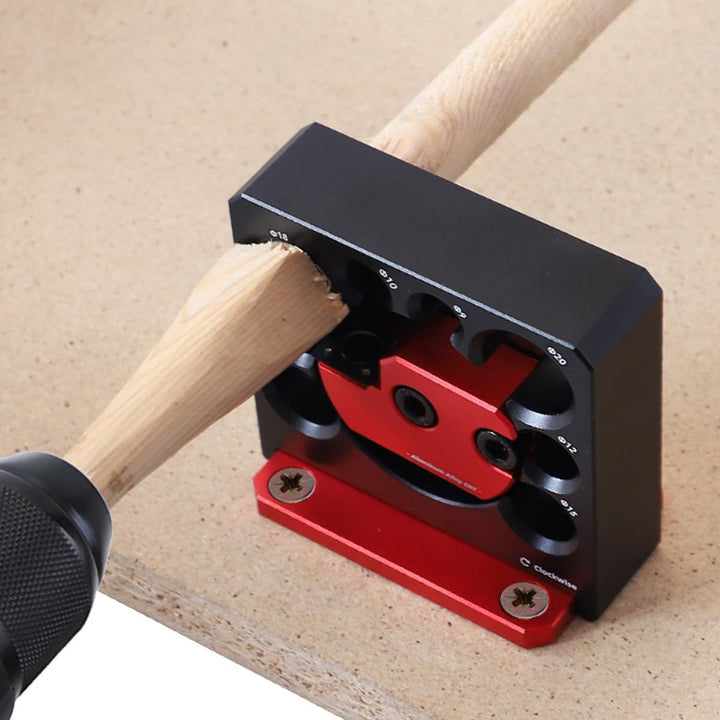

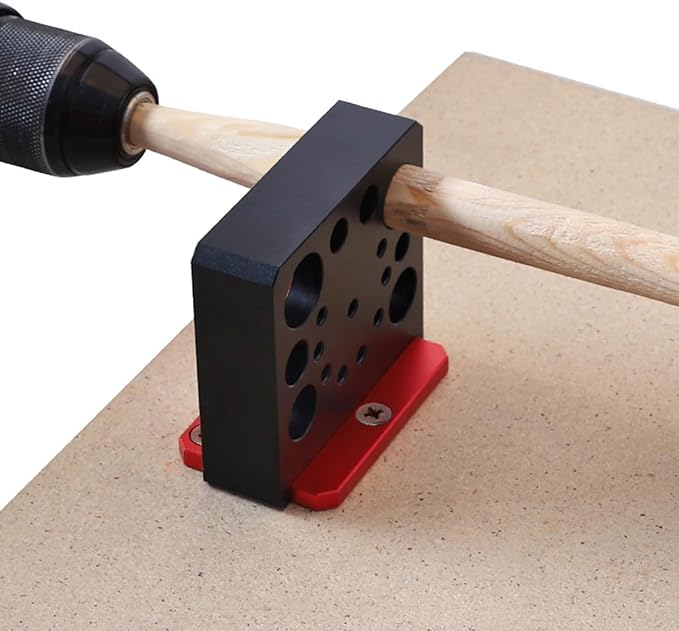

A very uniform hardwood works best. Cut your wood planks down to square profile blanks.The blank size just slightly larger than the dowel you are trying to make and taper the starting end. The connection between the wooden strip and the power tool should be as concentric as possible. During the operation, keep pushing horizontally and at a constant speed. If the resistance is large, slow down the pushing speed instead of using more force. When making a larger diameter dowel, it will be easier to make it by first passing it through a hole larger than the target diameter, and then through the hole of the target diameter.
Why Choose Our Dowel Maker Jig?
8-Hole Design Light-Weight & Portable Premium Quality & Durability Easy to Use & Efficient Save Time & Money
Specifications:

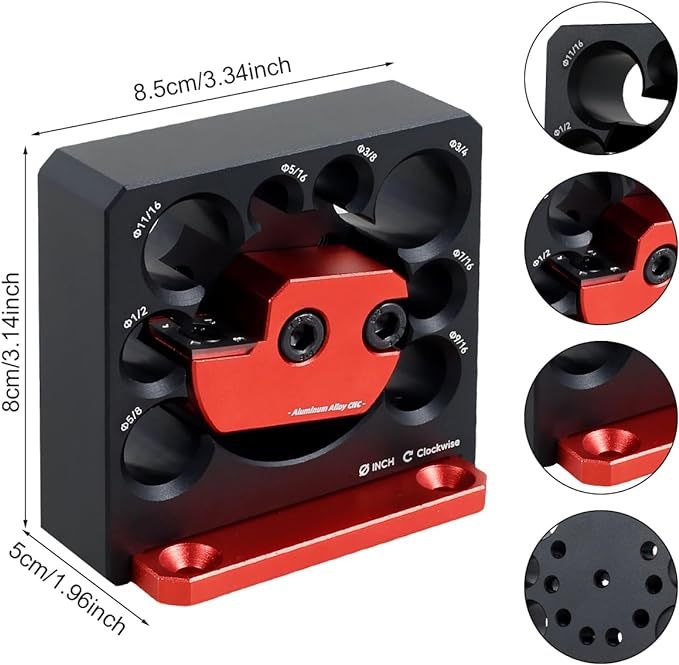

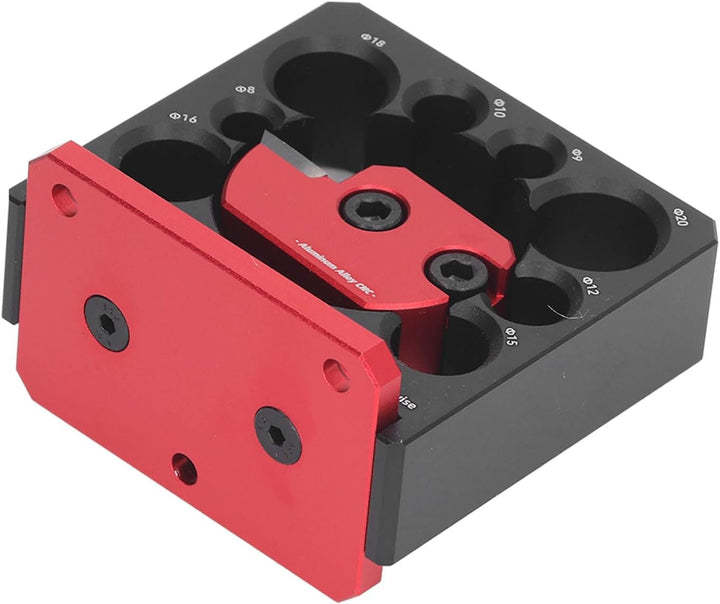

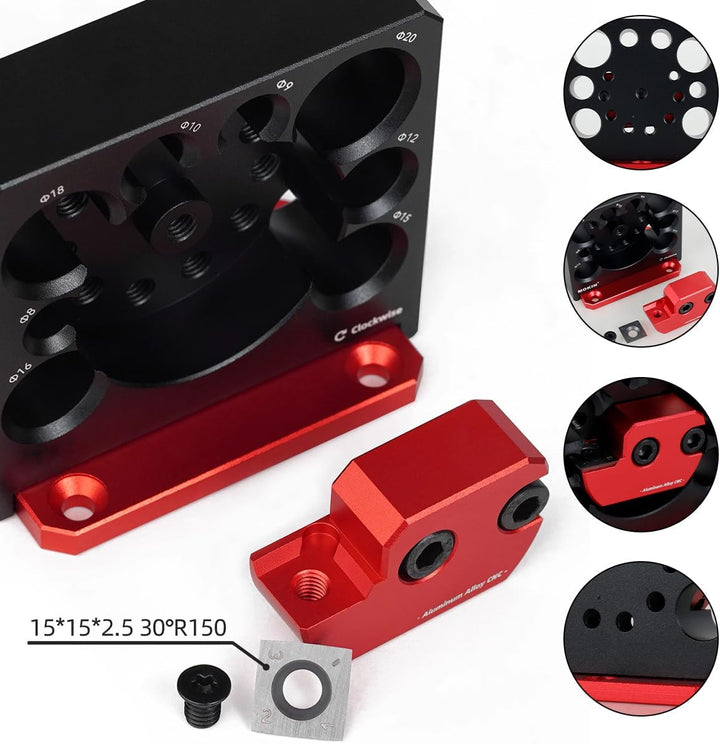

Material: Aluminum Alloy Material : CNC aluminum alloy/anodized dealingBlade material : carbideHole Diameter: 8mm(0.315"), 9mm(0.354"), 10mm(0.394"), 12mm(0.472"), 15mm(0.591"), 16mm(0.63"), 18mm(0.709"), 20mm(0.787"） Blade Size: 15 x 15 x 2.5 30°R150 Product size: 85 x 51 x 80mm(3.35 x 2 x 3.15 in)

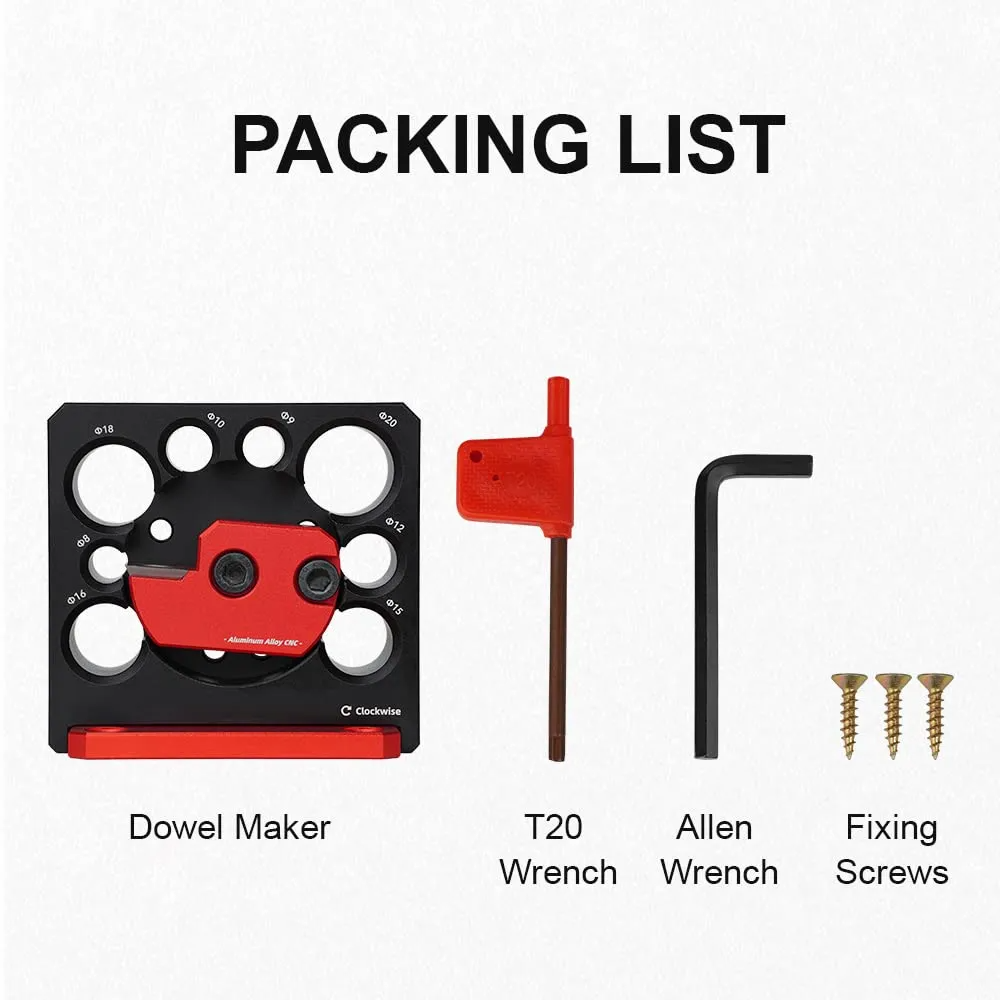

Product Includes:
1 x Dowel Maker Jig 1 x Blade Wrench (T20) 1 x Adjustment Wrench (5 mm) 3 x Fix Screws 1x User Manual
